Professional Outdoor Gazebo & Pergola Lighting
Upgrade your outdoor living area with the LRLEDS Professional Lighting Kit. Designed for durability, style, and ease of installation.
LRLEDS IP65 Pro 12-Piece System - Large Area LED Gazebo Lighting System
6-Pack Kit / Warm White 3000K
$68.90 USD
Sale price
$68.90 USD
Regular price
$98.43 USD
Skip to product information
LRLEDS IP65 Pro 12-Piece System - Large Area LED Gazebo Lighting System
$68.90 USD
Sale price
$68.90 USD
Regular price
$98.43 USD
Core Features:
- Plug & Play System: Simple DIY installation. The kit includes a power supply with a standard EU plug (AC220-240V), allowing you to connect directly to a high-voltage outlet without complex wiring.
- IP65 Waterproof: Industrial-grade sealing makes these spots perfect for the wet climates of Germany and the Netherlands.
- Safety First: The spots operate on 12V DC safety voltage.
- Precision Optics: 30° precision beam angle for high-end architectural lighting effects.
-
Customizable: MOQ is 1 set. We also offer custom sets (4, 8, 12+ lights) to fit your specific gazebo size. Contact us for a quote!

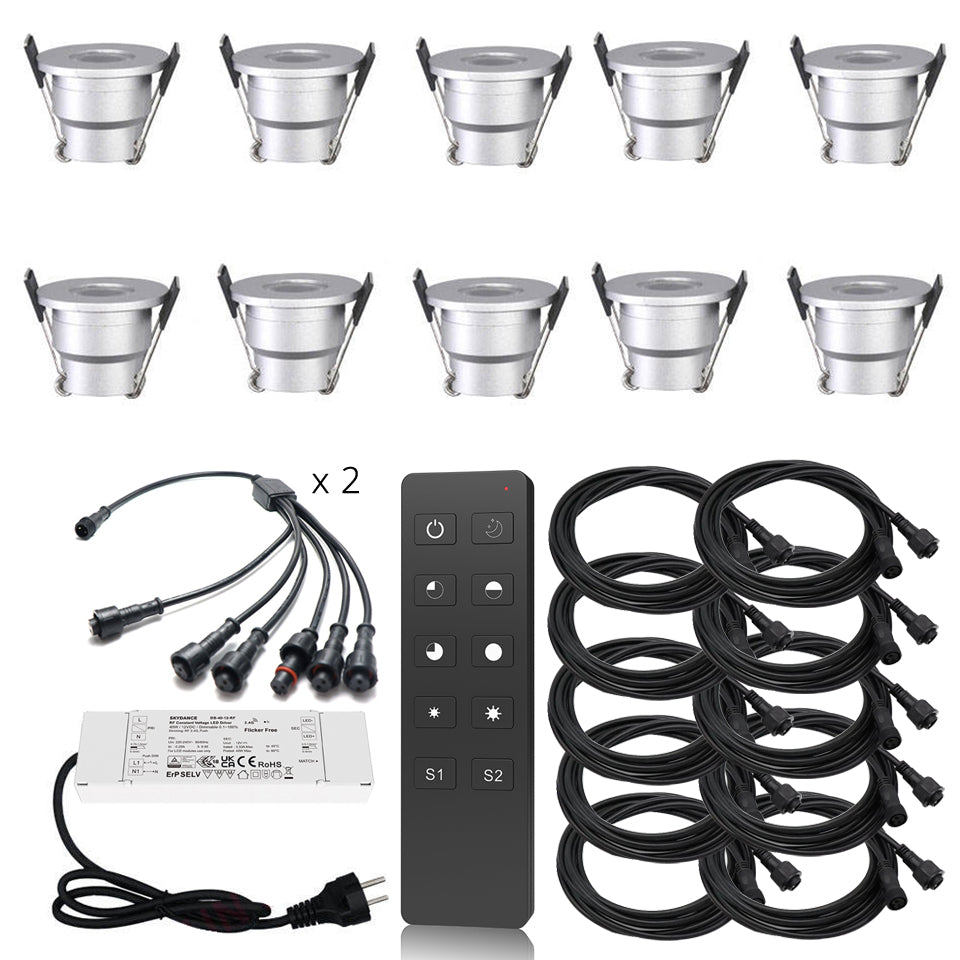

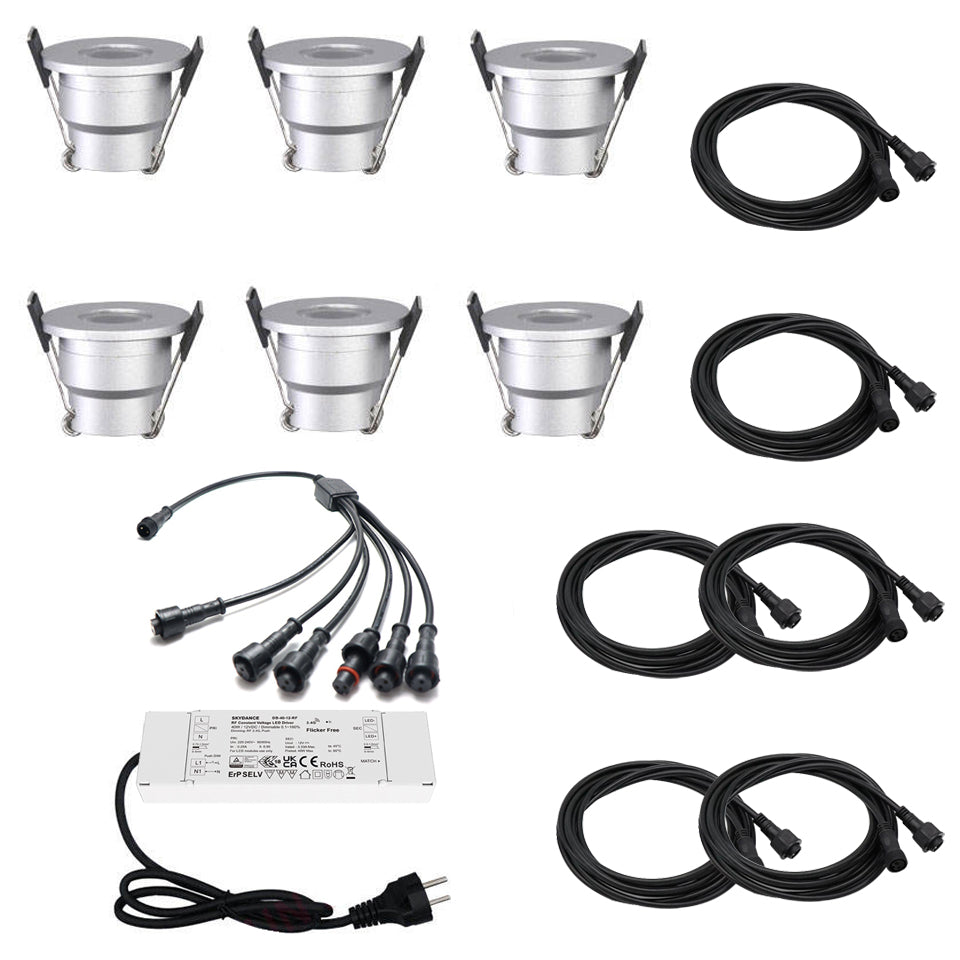

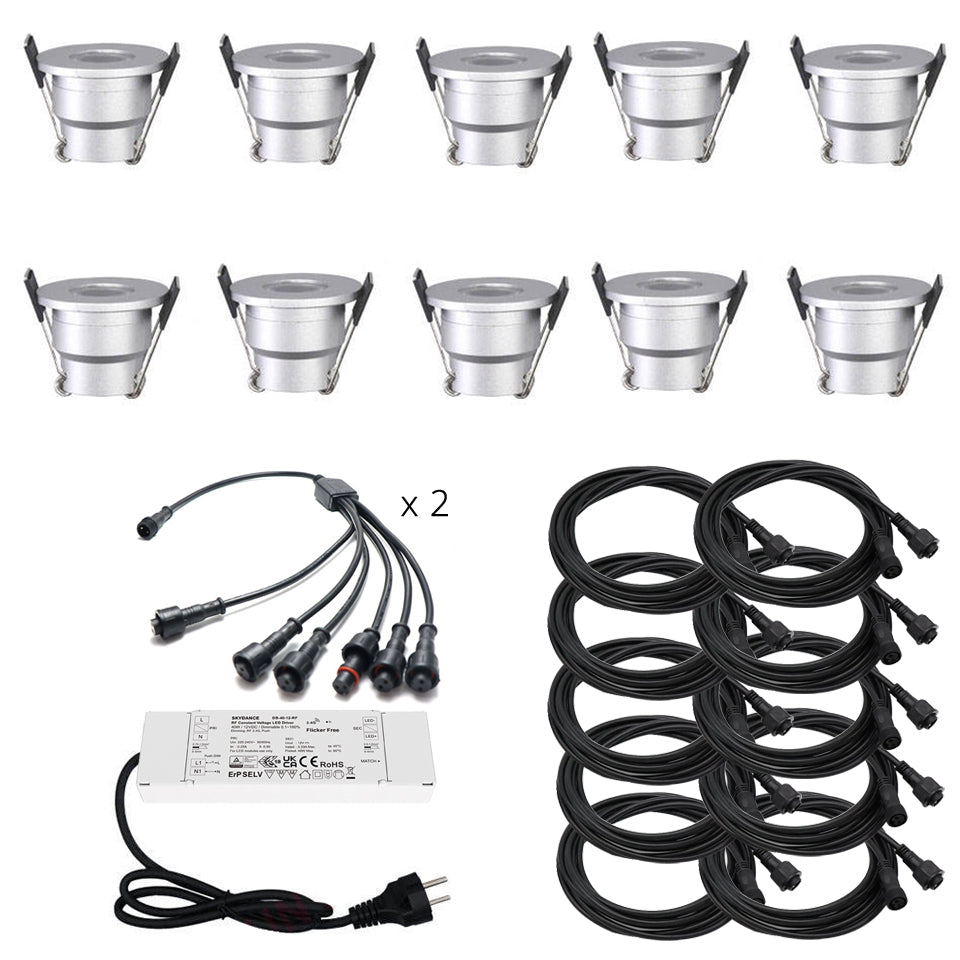

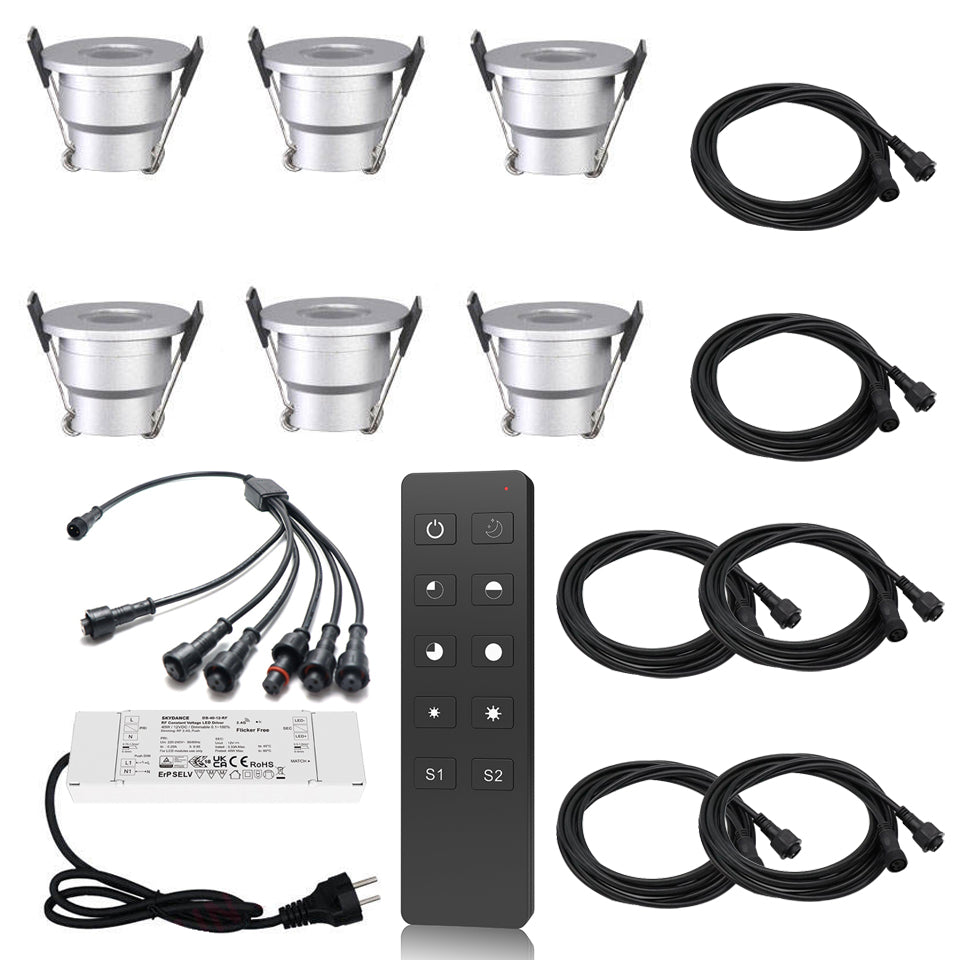

Package:
1. 6-12 pack-LED Spotlights (IP65)
2. 6-12 pack-Extension cable (IP65)
3. 1-LED Driver: DB-40-12-RF (IP20)
4. 1-Remote controller: R1 (IP20)
5. 1-Power Distribution Splitter Cable (IP65)
6. 1-Plug cord
Warranty: 3 YEARS
Pickup currently not available
LED Spotlights：6-12pcs
Watts: 3W/leds
Waterproof IP Rating: IP65
Color: Warm White3000K/Natural White 4000K/Pure White 6000K
Beam Angle: 30°
Lumens: 100lm/W
CIR: Ra90
Working Voltage: 12V DC
Size: D36*H26mm
Cutout Size: 27mm
Surface Finishing: frosted
Materials: Aluminum

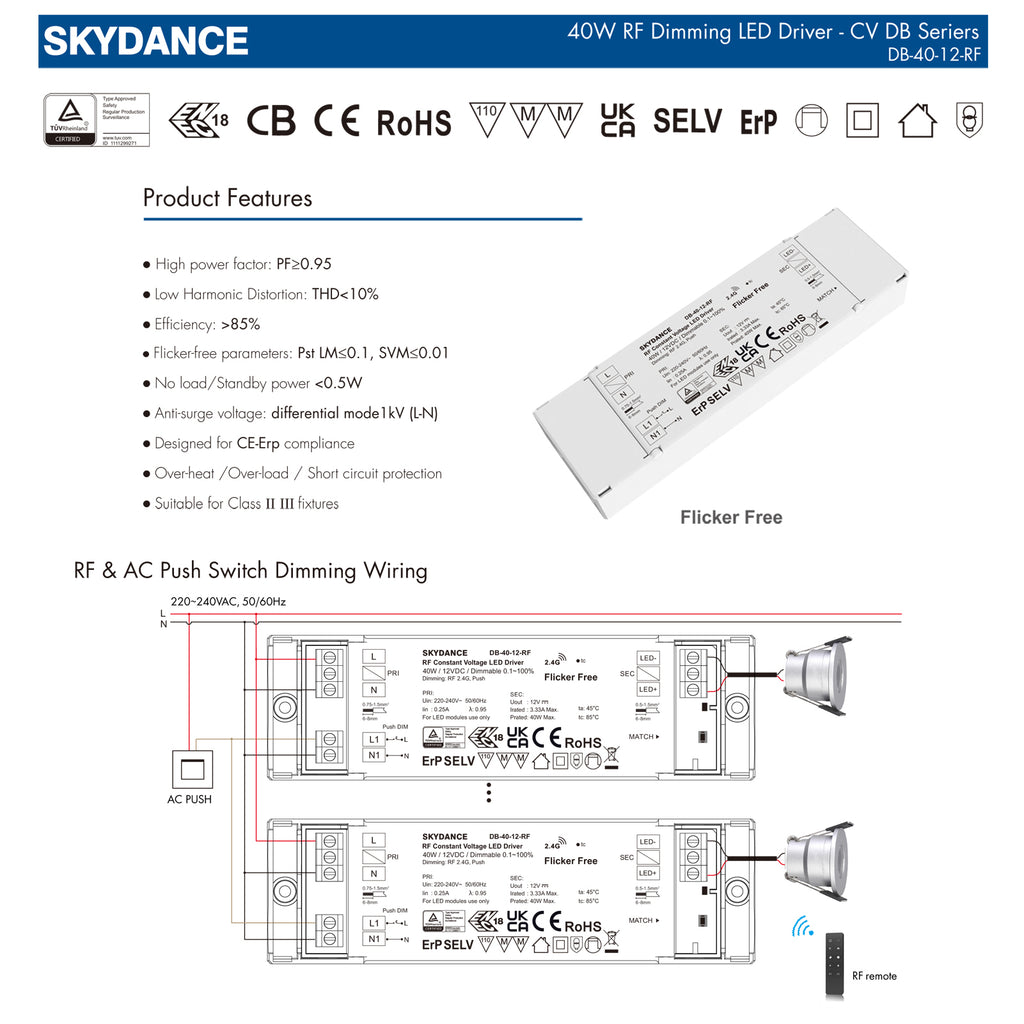

LED Driver: DB-40-12-RF
Input Voltage Range: 220~240VAC 50/60Hz
Output : 12VDC/40W
Ripple&Noise: 100mV
PWM Frequency: 4000Hz
High power factor: PF≥0.95
Efficiency: >85%
Flicker-free parameters: Pst LM≤0.1, SVM≤0.01
No load/Standby power <0.5W
Anti-surge voltage: differential mode1kV (L-N)
Over-heat /Over-load / Short circuit protection
Control: RF remote/AC Push Switch
IP Rating: IP20

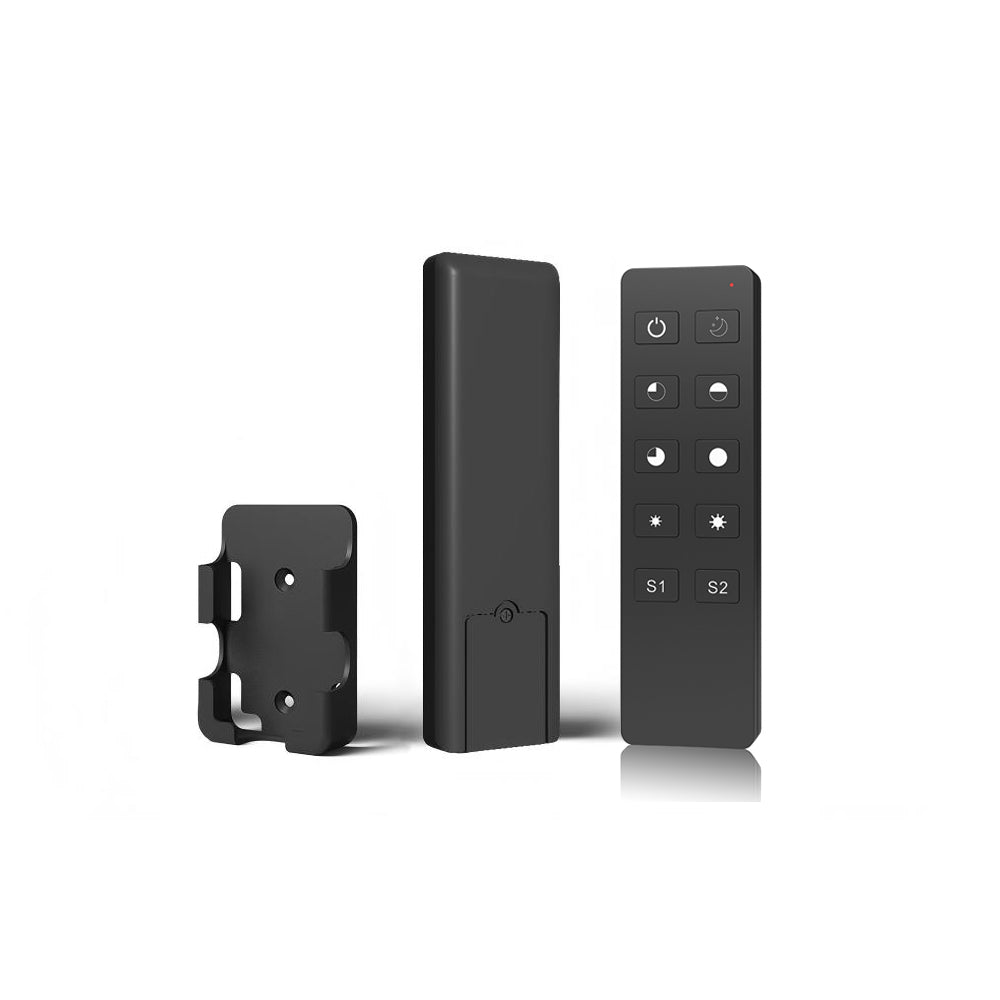

RF Remote Controller: R1
Function: 1 Zone dimming remote
Dimming Range: 0-100%
Output signal RF(2.4GHz)
Working voltage 3VDC
Working current <5mA
Standby current <2μA
Standby time 2 years
Remote distance 30m(Barrier-free space)
Battery: CR2032 powered
Each remote can match one or more led driver
Remote Control Mounting: Magnetic Attachment / Screw Mount / Adhesive Mount
How to use them:
LED Light Installation Placement Image
Complete Wiring Diagram
Included Accessories：
Plug Cord: EU (1 meter)

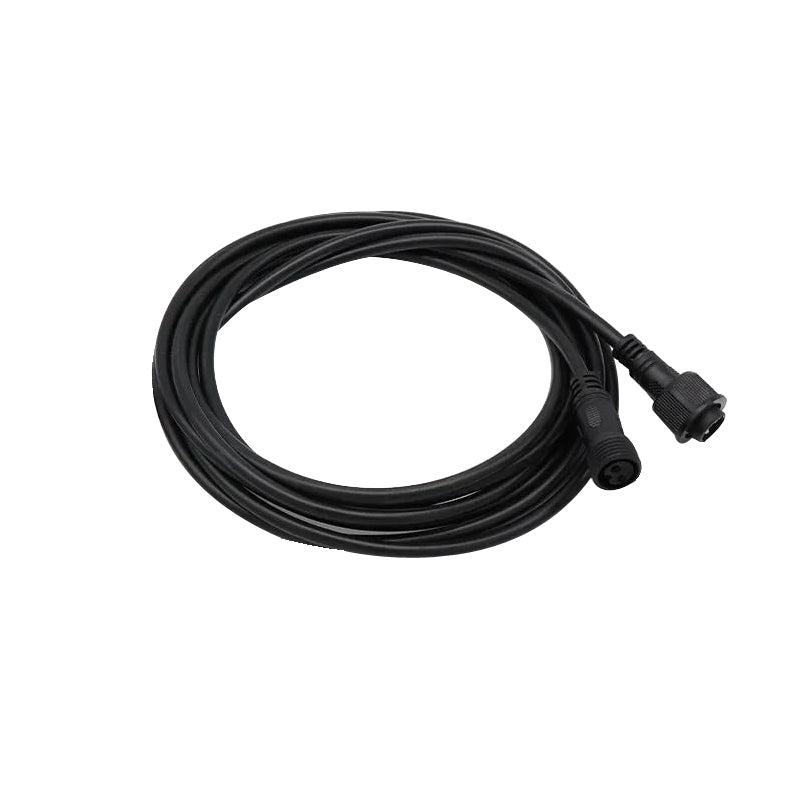

Extension Cable: 4M/pcs (24AWG)

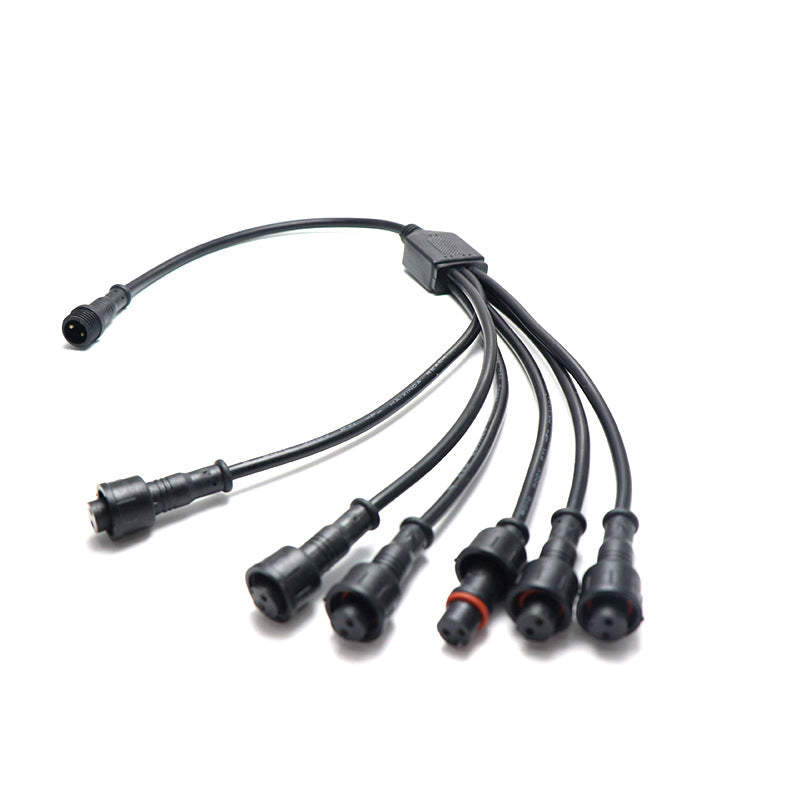

Power Distribution Splitter Cable: 6-12 ways

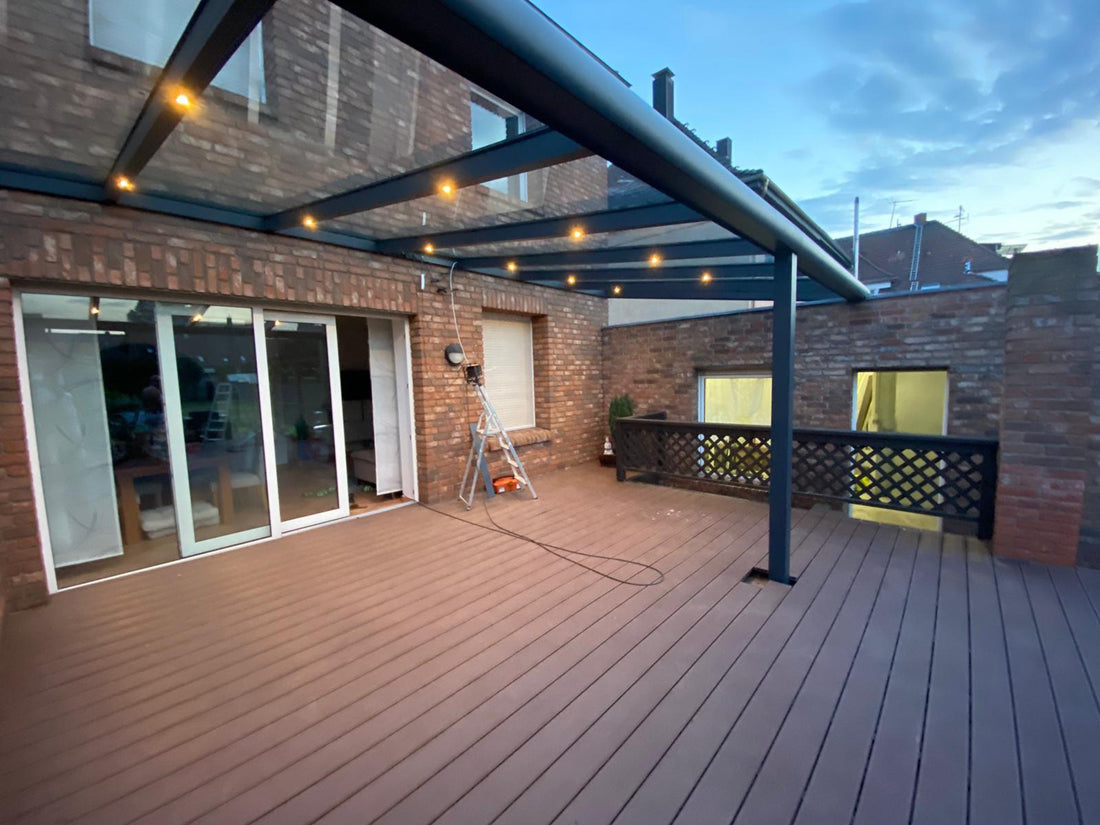

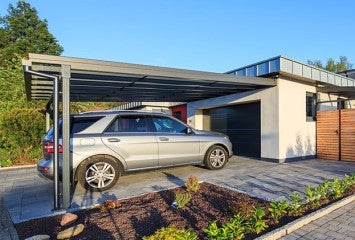

Real Application Scenes
Key Features:
- IP65 waterproof led spotlights & dustproof structure, suitable for all weather outdoor use
- 110V/220V universal household voltage, no transformer needed, stable and safe
- Premium aluminum lamp body, good heat dissipation, rust-free and long lifespan
- Complete set with spotlights, power adapter, remote and extension cables
- Spring clip recessed mounting, easy to fit wooden, aluminum and glass canopy
- Wireless remote control for brightness adjustment and on/off
- Certificates: ENEC, TUV, CB, CE, RoHS, UKCA, EPR
Wide Applications:
Perfect for gazebo, pergola, patio canopy, balcony awning, carport, winter garden, bathroom, kitchen cabinet, basement, BBQ canopy and exhibition stall interior lighting. Not suitable for vehicles, RVs and yachts.
